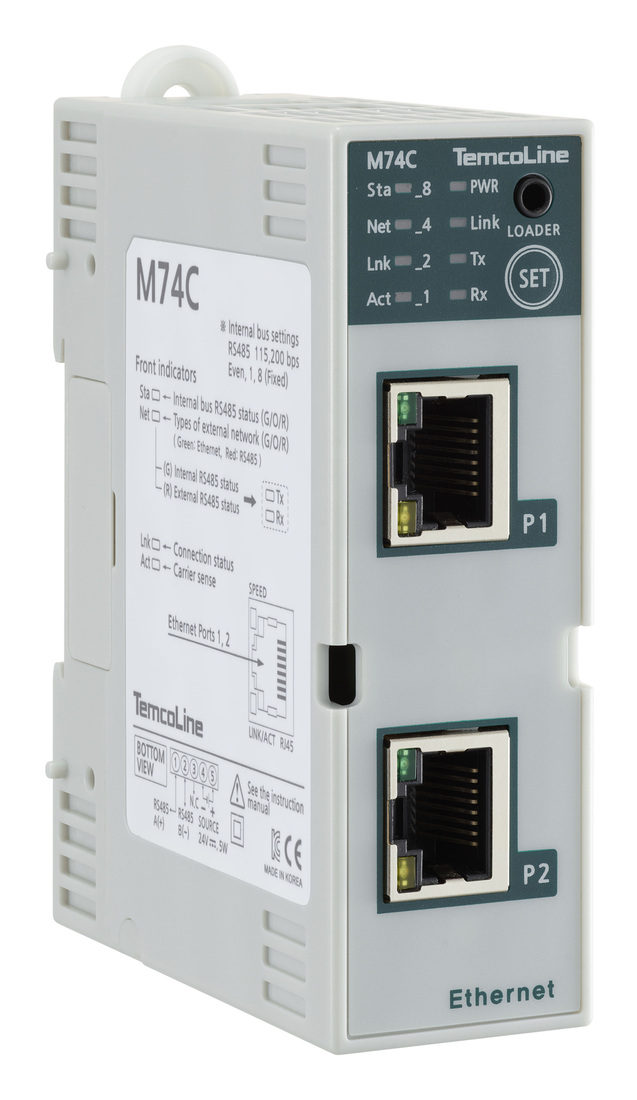

M74CEthernet Communication Module
Connect your M74 series modules on one network.
Ethernet · RS-485
Integrate with industrial networks

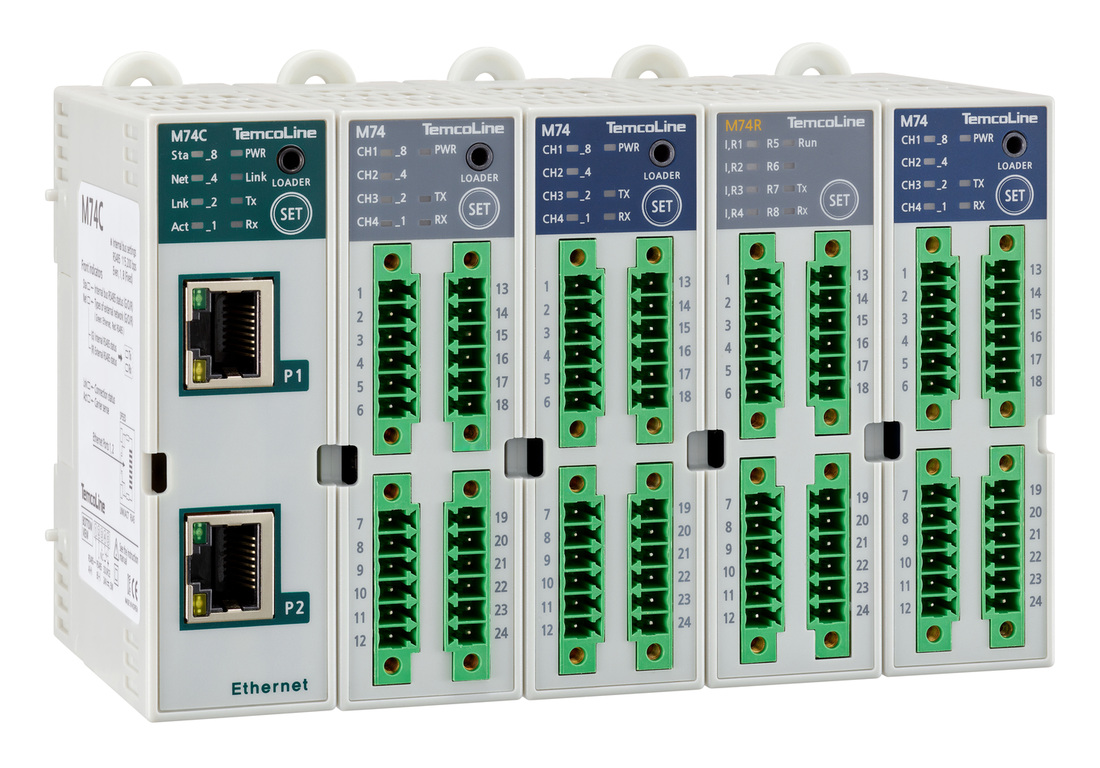

Manage up to 31 modules
Manage multiple control modules on one network
Automatic address mapping
Simplify configuration and system setup
Manuals Library
Product Inquiry
Features
M74C FeaturesM74C is a compact communication module with high-speed data access. It manages up to 31 M74 or M74P modules, with data access at 22.5 ms per module over the dedicated internal bus. Ethernet (Modbus TCP) and RS-485 are standard, together with up to 400 user-defined registers and automatic address mapping.
Compact construction
At approximately 70% of the volume of competing products, M74C helps make efficient use of control-panel space.
Ethernet & RS-485
Supports Ethernet 10/100BaseT and RS-485 at 19,200–115,200 bps.
High-speed interface
Automatically detects connected M74 series modules and provides data access at 22.5 ms per module.
User-defined register map
Assign up to 400 user-defined registers for batch reading and real-time monitoring.
Integrated station & register mapping
Automatically maps the station numbers and register addresses of connected M74 series modules, eliminating separate address-mapping work.
Specifications
View Catalog PDF| General | |
|---|---|
| Model | M74C |
| Supply voltage | 24 V DC |
| Allowable voltage range | 90–110% of rated supply voltage |
| Power consumption | 3 W max. (M74C alone, at maximum load) |
| Display & operation | No built-in display. Configure parameters and monitor/control via an external console, touch panel, PC or PLC. |
| Dimensions | 29(W) × 90(H) × 70(D) mm |
| Communication | |
| Host interface · Ethernet | P1·P2 / Ethernet 10/100BaseT / Modbus TCP |
| Ethernet function codes | 03 Read Holding / 06 Write Single / 16 Write Multiple Registers |
| Host interface · RS-485 | Modbus ASCII/RTU / 19,200~115,200 bps |
| RS-485 function codes | 03 Read Holding / 06 Write Single / 16 Write Multiple Registers |
| Internal bus · Protocol | RS-485 / Modbus RTU / 115,200 bps (fixed) |
| Internal bus · Data format | Even parity / 8 data bits / 1 stop bit |
| PC Loader · Protocol | Modbus RTU / 19,200 bps (fixed) |
| PC Loader · Data format | Even parity / 8 data bits / 1 stop bit |

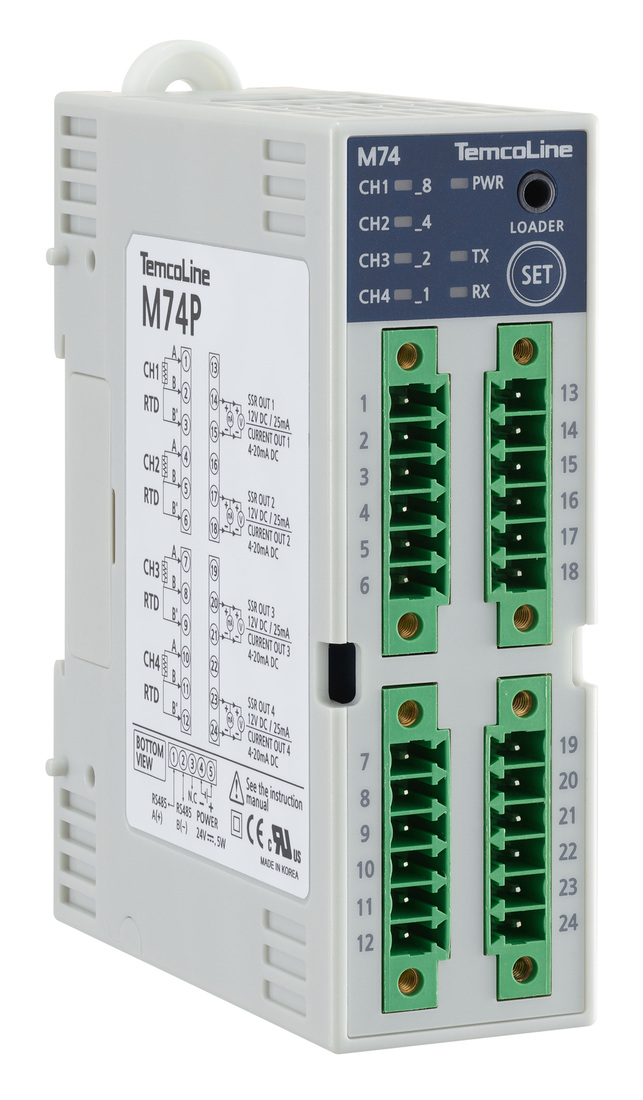

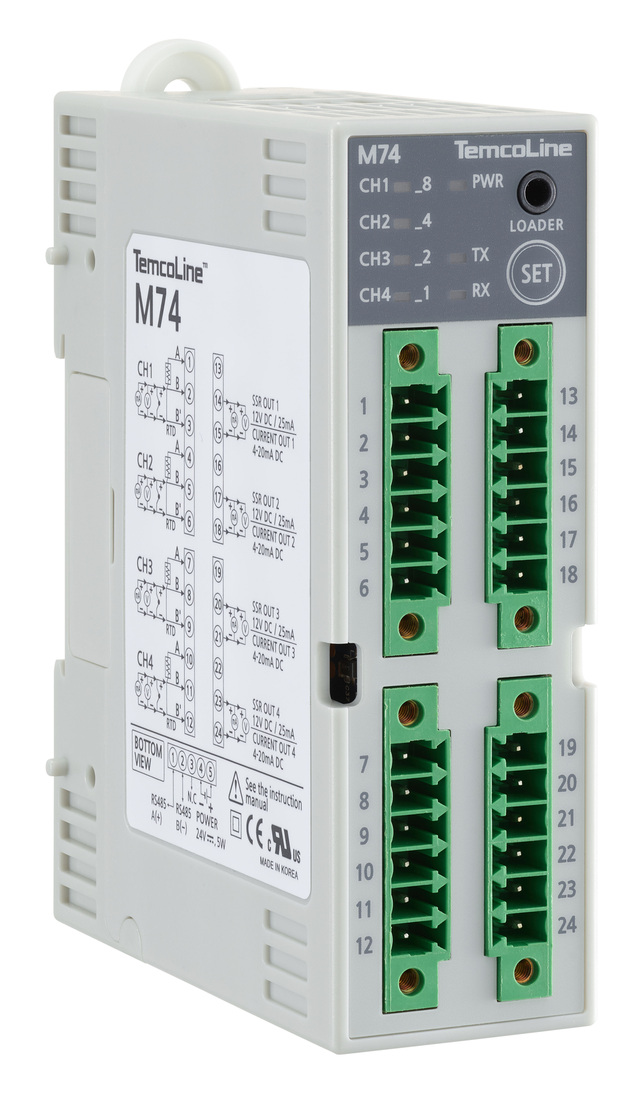

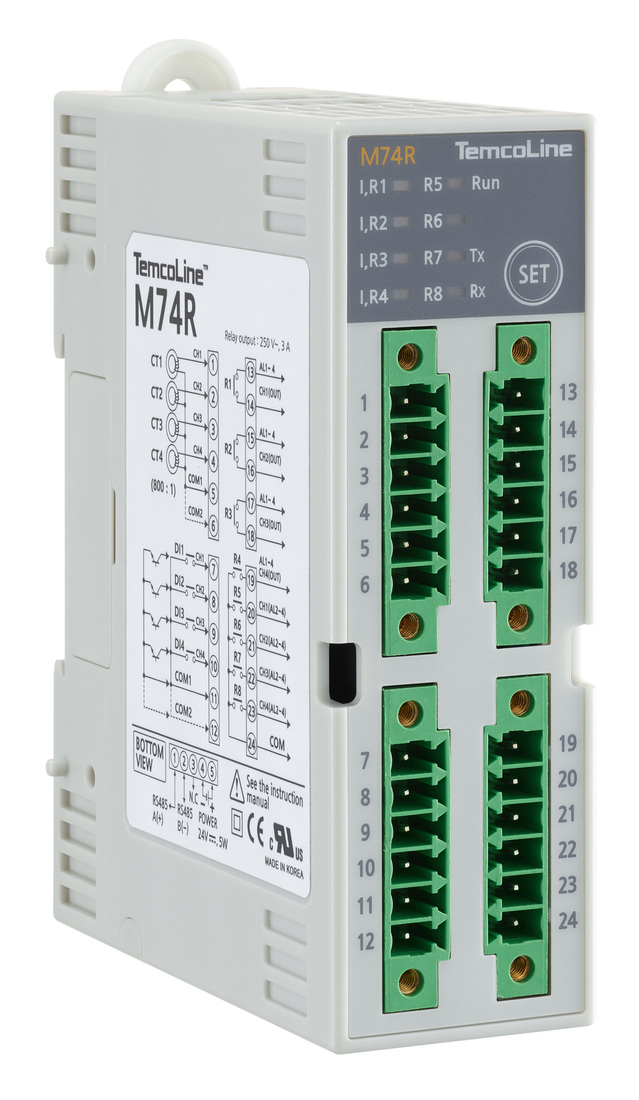

| Maximum connections · Internal bus | Up to 31 M74/M74P modules per M74C. M74R is subordinate to M74/M74P and is not included in this count. |
| Maximum connections · Host interface | Up to 32 units in RS-485 mode. Ethernet connections depend on IP address allocation. |
| User-defined registers | Up to 400 registers |
| Internal data access | 22.5 ms per module |
| Insulation, Reliability & Environment | |
| EEPROM endurance & retention | At least 4 million write cycles / At least 200 years of data retention |
| Insulation resistance | 100 MΩ min. (500 V DC insulation tester) |
| Insulation construction | Double or reinforced insulation / Dielectric strength of at least 1 kV between measurement input and power supply |
| Dielectric strength | 1,000 V AC, 50/60 Hz for 1 minute, between communication inputs and power terminals |
| Vibration resistance | 5–55 Hz (1-minute cycle), 0.75 mm double amplitude / 2 hours each in X, Y and Z directions |
| Noise immunity | Noise simulator square wave, 1 μs pulse width / ±1 kV |
| Ambient temperature | Operating: −10 to 50 °C / Storage: −20 to 60 °C |
| Ambient humidity | Operating: 35–85% RH / Storage: 35–85% RH |
| Weight | Approx. 187 g with packaging / Approx. 105 g net |
Dimensions & Wiring

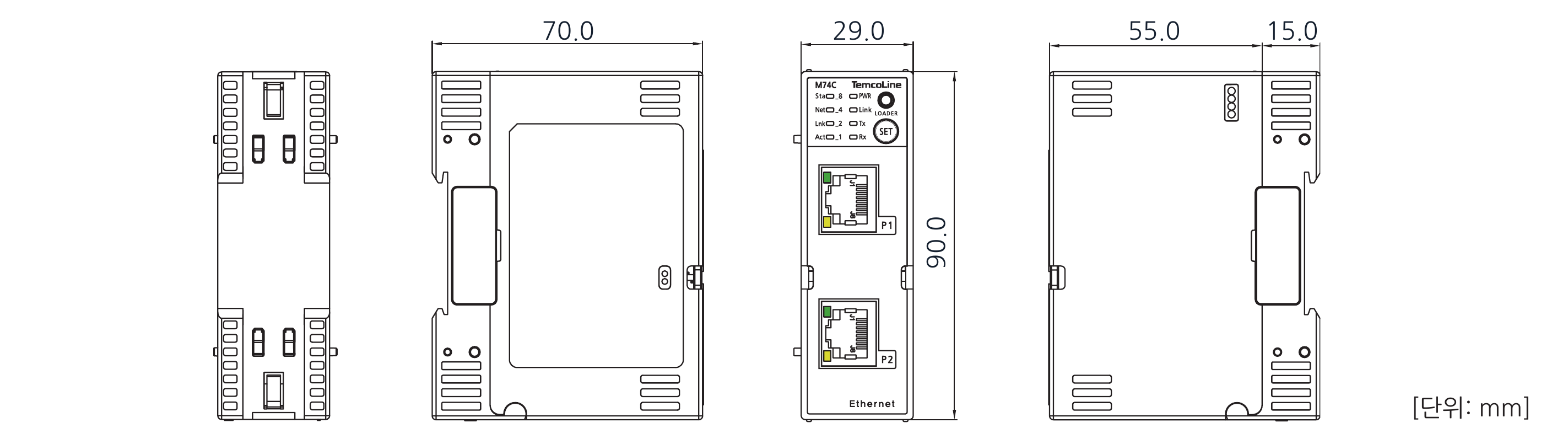

Zoomable drawings · Original vector PDFsDimensions
Vector PDF

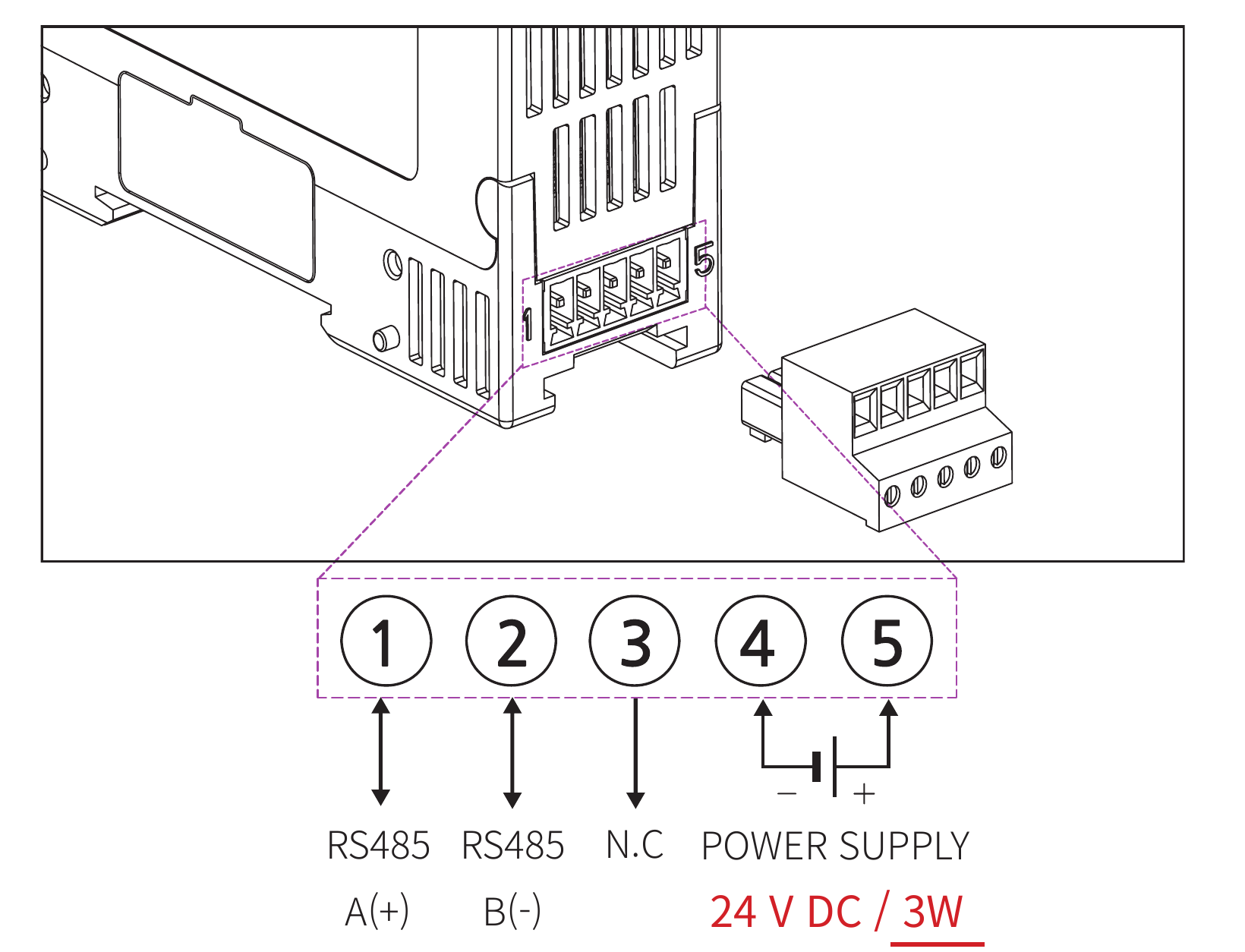

Enlarge drawingPower & Communication Wiring
Vector PDF
Enlarge drawingRelated Downloads
